Urinal and bidet installation box water connection and waste.

The installation box for urinal and bidet brings the water connection and waste into the wall ready-piped: an XPS insulating body with the pipe foamed in, in masonry with a DN 50 trap bend. SANOOX makes it in 4 versions for masonry and drywall, for 31 pipe systems.

ConfigureExplore models

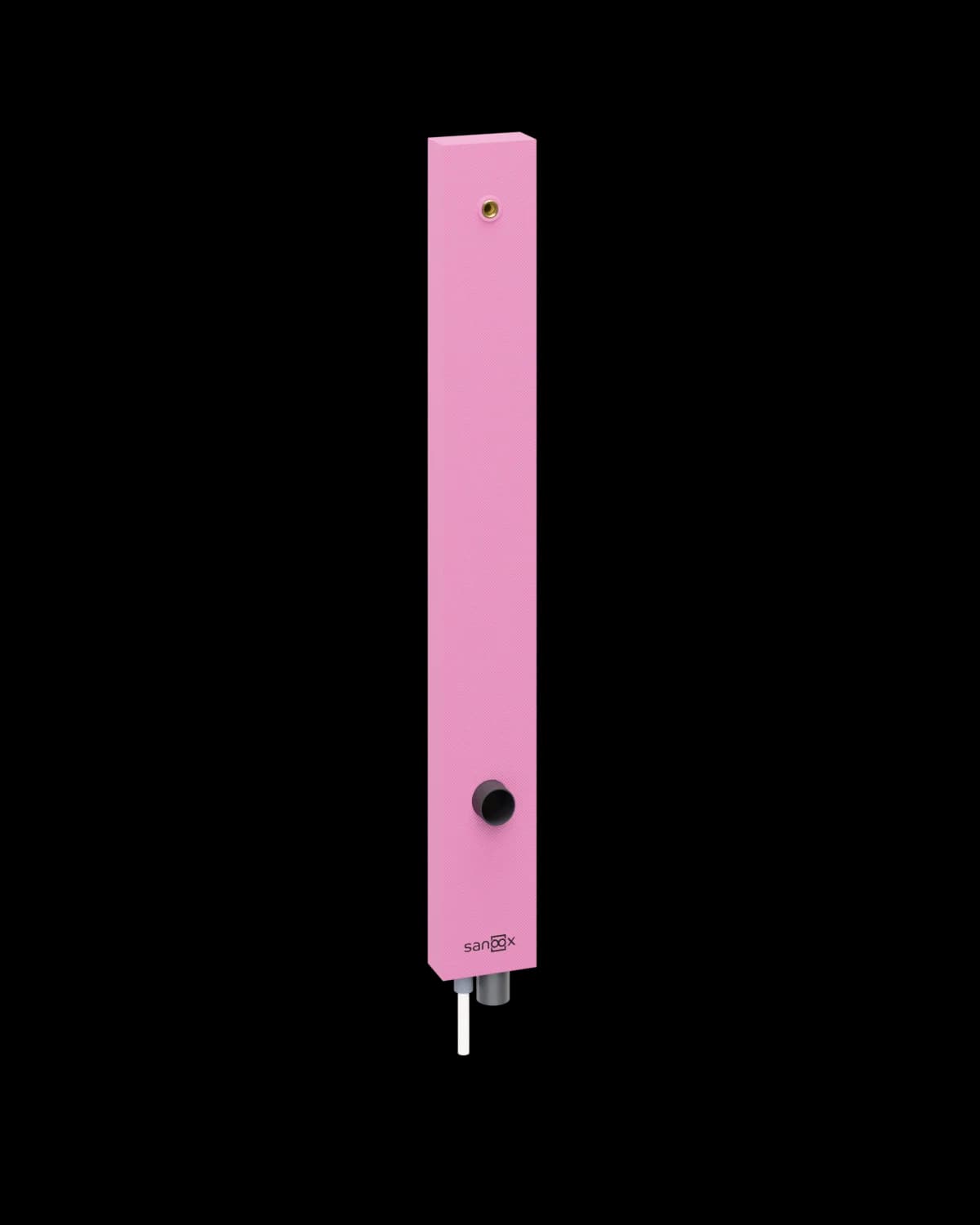

SANOOX urinal installation box M08.0620 for masonry, long slim pink XPS box with one wall-plate elbow at the top, trap bend at the bottom and pipes pointing down

Installation boxes for urinal and bidet

4 boxes · dimensions in mm, drawings schematic
Urinal & bidet · from the field

Questions about the urinal connection.

Short answers to what matters before you order. If anything is still unclear, the box assistant or our office in Pöllau can help.

ConfigureContact
What is an installation box for the urinal?

A factory-piped XPS insulating body that brings the water connection and waste for the urinal ready into the wall: in masonry 1250 mm long, with a ½″ wall-plate elbow at the top and the trap bend at the bottom.

Is the urinal box available with a Geberit rough-in set?

Yes. In masonry with the Geberit rough-in set 116001, 230 mm wide; in drywall with a Geberit rough-in set, 420 mm wide.

What thread does the urinal connection have?

½″ on the urinal box M08.0620.

Which drain layout is prepared in the Installation box for urinal or bidet?

Ein trap bend 2″ or trap bend DN 50, matched to the drainage programme on site: Geberit Silent PP, Pipelife Master 3 or Polokal PK. The programme is the last digit of the article number.

Is there a box for the bidet?

Yes, a short box for masonry with a DN 50 trap bend and pipe routing to the bottom.

How deep is the box?

70 mm. The urinal box without a rough-in set and the bidet box are also available 50 mm deep with option 00199, with DN 40 waste.

What pipe size does the Installation box for urinal or bidet use?

16 or 20 mm, depending on the variant; with Roth pipe 17 instead of 16 mm. PP pipe (Aquatec, Harreither and Kelit Kelen) is available in 20 or 25 mm.

How is the article number structured?

It is built from Box, Pipe system, Dimension and Drainage programme. Example M08.0620.22.16.1: Box M08.0620 (Urinal lang, ½″ Anschluss, Massivbau), Pipe system 22 (Viega Raxofix), 16 mm, Drainage programme 1 (Geberit Silent PP). The configurator shows the finished number.

Where do I order the Installation box for urinal or bidet?

Through your plumbing and heating merchant, using the full article number; SANOOX does not supply end customers. Build project lists in the configurator and send them to SANOOX as an enquiry.

Urinal and bidet: dimensions per box

BoxVersionW × H × D (mm)Pipe (mm)
M08.0620MasonryUrinal, long, ½″ connection, pipes exit at the bottom, long pipes150 × 1250 × 7016/20 · 20/25
M08.0630MasonryUrinal, long, Geberit rough-in set 116001, pipes exit at the bottom, long pipes230 × 1250 × 7016/20 · 20/25
M08.1470MasonryBidet, short, pipes exit at the bottom, long pipes–16/20 · 20/25
T08.2440DrywallUrinal, Geberit rough-in set420 × 1250 × 7016/20 · 20/25

Urinal: long box with a ½″ connection

The urinal box for masonry measures 150 × 1250 mm, with a ½″ wall-plate elbow at the top and the 2″ DN 50 trap bend in the lower part. With the built-in Geberit rough-in set 116001 it is 230 mm wide.

For the stud wall there is a 420 mm wide urinal box with a Geberit rough-in set, which sits with side fixing rails between the studs.

Bidet

The bidet box is a short box for masonry, 70 mm deep, with a DN 50 trap bend and pipe routing to the bottom.

Pipe systems for urinal and bidet
