Basin installation box hot, cold and waste from the factory.

The installation box for the basin brings cold water, hot water and the waste into the wall ready-piped: an XPS insulating body with the pipe foamed in, wall-plate elbows and a trap bend or concealed trap. SANOOX makes it in 58 versions for masonry and drywall, for 31 pipe systems.

ConfigureExplore models

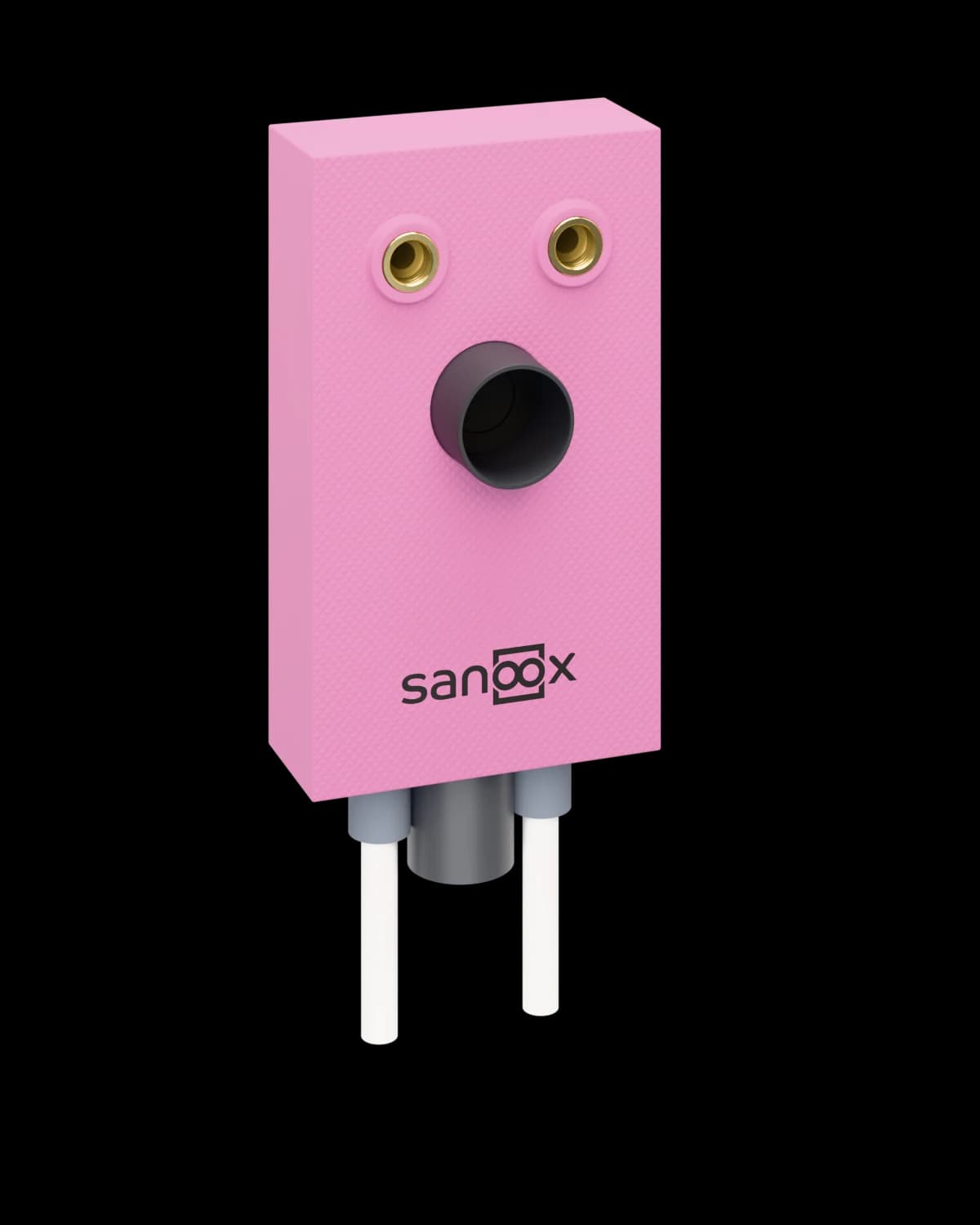

SANOOX basin installation box M01.1000 for masonry, pink XPS body with two wall-plate elbows, trap bend and pipes pointing down

Basin installation boxes for masonry and drywall

58 boxes · dimensions in mm, drawings schematic
Basin · from the field

Questions about the basin installation box.

Short answers to what matters before you order. If anything is still unclear, the box assistant or our office in Pöllau can help.

ConfigureContact
What is the spacing between hot and cold water in the box?

80, 153 or 270 mm, depending on the waste: 80 mm with a trap bend or concealed valves, 153 mm with the concealed trap HL 134, 270 mm with HL 4000 or Geberit 151125. Boxes with a concealed valve body have no wall-plate elbows.

Which drain layout is prepared in the Basin installation box?

Ein trap bend DN 50, matched to the drainage programme on site: Geberit Silent PP, Pipelife Master 3 or Polokal PK. The programme is the last digit of the article number. There are also boxes with a built-in Concealed trap HL 134, HL 4000 or Geberit 151125, drain DN 40 or 50; the article number shows the trap instead of the programme.

How deep is the basin installation box?

70 mm, 80 mm with the concealed trap HL 4000 and 90 mm with Geberit 151125. For five masonry boxes, option 00199 offers a 50 mm box depth with DN 40 waste.

How is the box fixed in drywall?

With side fixing rails between the studs; for the 350 mm wide boxes, the basin cross brace is also available (option 00194). The basin mounting element comes with U-rails, on request with a multi-ply board.

Which box suits a countertop or vessel basin?

A box from the dedicated countertop basin category. There the waste runs via an 87.5° bend, centred, left, right or height-adjustable.

What pipe size does the Basin installation box use?

16 or 20 mm, depending on the variant; with Roth pipe 17 instead of 16 mm. PP pipe (Aquatec, Harreither and Kelit Kelen) is available in 20 or 25 mm. Not every box shape comes in every size; the dimension table shows what applies to each box.

How is the article number structured?

It is built from Box, Pipe system, Dimension and Drainage programme. Example M01.1000.22.16.1: Box M01.1000 (Washbasin, short, Masonry), Pipe system 22 (Viega Raxofix), 16 mm, Drainage programme 1 (Geberit Silent PP). The configurator shows the finished number.

Where do I order the Basin installation box?

Through your plumbing and heating merchant, using the full article number; SANOOX does not supply end customers. Build project lists in the configurator and send them to SANOOX as an enquiry.

Basin connection: dimensions per box

BoxVersionW × H × D (mm)Wall plates (mm)Pipe (mm)
M01.0100MasonryWashbasin, long, pipes exit at the bottom, long pipes170 × 600 × 708016/20 · 20/25
M01.1000MasonryWashbasin, short, pipes exit at the bottom, long pipes170 × 290 × 708016/20 · 20/25
M01.1010MasonryWashbasin, short, pipes exit at the top, short pipes170 × 290 × 708016/20 · 20/25
M01.0114MasonryWashbasin, long, concealed trap HL 134, pipes exit at the bottom, long pipes240 × 600 × 7015316/20 · 20/25
M01.1024MasonryWashbasin, short, concealed trap HL 134, pipes exit at the bottom, long pipes240 × 250 × 7015316/20 · 20/25
M01.1034MasonryWashbasin, short, concealed trap HL 134, pipes exit at the top, short pipes240 × 250 × 7015316/20 · 20/25
M01.0110MasonryWashbasin, long, concealed trap HL 4000, pipes exit at the bottom, long pipes370 × 600 × 8027016/20 · 20/25
M01.1020MasonryWashbasin, short, concealed trap HL 4000, pipes exit at the bottom, long pipes370 × 290 × 8027016/20 · 20/25
M01.1030MasonryWashbasin, short, concealed trap HL 4000, pipes exit at the top, short pipes370 × 290 × 8027016/20 · 20/25
M01.0112MasonryWashbasin, long, concealed trap Geberit 151125, pipes exit at the bottom, long pipes350 × 600 × 9027016/20 · 20/25
M01.1022MasonryWashbasin, short, concealed trap Geberit 151125, pipes exit at the bottom, long pipes350 × 290 × 9027016/20 · 20/25
M01.1032MasonryWashbasin, short, concealed trap Geberit 151125, pipes exit at the top, short pipes350 × 290 × 9027016/20 · 20/25
M01.0120MasonryWashbasin, long, 2 concealed valves, 1/2″, pipes exit at the bottom, long pipes350 × 600 × 708020 · 25 PP
M01.0130MasonryWashbasin, long, 2 concealed valves 1/2″, 1 water meter, pipes exit at the bottom, long pipes350 × 600 × 708020 · 25 PP
M01.0140MasonryWashbasin, long, 2 concealed valves 1/2″, 2 water meters, pipes exit at the bottom, long pipes350 × 600 × 708020 · 25 PP
M01.0150MasonryWashbasin, long, Hansgrohe 1362 2180, concealed body, outlet, right, pipes exit at the bottom, long pipes290 × 1150 × 70–16/20 · 20/25
M01.0160MasonryWashbasin, long, Grohe 23571, concealed body, outlet, right, pipes exit at the bottom, long pipes290 × 1150 × 70–16/20 · 20/25
M01.0170MasonryWashbasin, long, Hansa 5786 0100, concealed body, outlet, right, pipes exit at the bottom, long pipes290 × 1150 × 70–16/20 · 20/25
M01.0180MasonryWashbasin, long, Kludi 38243, concealed body, outlet, right, pipes exit at the bottom, long pipes290 × 1150 × 70–16/20 · 20/25
M01.0190MasonryWashbasin, long, Hansgrohe 1362 2180, concealed body, outlet, left, pipes exit at the bottom, long pipes290 × 1150 × 70–16/20 · 20/25
M01.0200MasonryWashbasin, long, Grohe 23571, concealed body, outlet, left, pipes exit at the bottom, long pipes290 × 1150 × 70–16/20 · 20/25
M01.0210MasonryWashbasin, long, Hansa 5786 0100, concealed body, outlet, left, pipes exit at the bottom, long pipes290 × 1150 × 70–16/20 · 20/25
M01.0220MasonryWashbasin, long, Kludi 38243, concealed body, outlet, left, pipes exit at the bottom, long pipes290 × 1150 × 70–16/20 · 20/25
T01.2000DrywallWashbasin, short, pipes exit at the bottom, long pipes350 × 290 × 708016/20 · 20/25
T01.2005DrywallWashbasin, short, pipes exit at the top, short pipes350 × 290 × 708016/20 · 20/25
T01.2010DrywallWashbasin, short, concealed trap, HL 134, pipes exit at the bottom, long pipes350 × 290 × 7015316/20 · 20/25
T01.2015DrywallWashbasin, short, concealed trap, HL 134, pipes exit at the top, short pipes350 × 290 × 7015316/20 · 20/25
T01.2575DrywallWashbasin, short, concealed trap, HL 4000, pipes exit at the bottom, long pipes350 × 290 × 8027016/20 · 20/25
T01.2580DrywallWashbasin, short, concealed trap, HL 4000, pipes exit at the top, short pipes350 × 290 × 8027016/20 · 20/25
T01.2585DrywallWashbasin, short, concealed trap, Geberit 151125, pipes exit at the bottom, long pipes350 × 290 × 9027016/20 · 20/25
T01.2590DrywallWashbasin, short, concealed trap, Geberit 151125, pipes exit at the top, short pipes350 × 290 × 9027016/20 · 20/25
T01.2020DrywallWashbasin installation element, pipes exit at the bottom, long pipes400 × 650 × 708016/20 · 20/25
T01.2025DrywallWashbasin installation element, pipes exit at the top, short pipes400 × 650 × 708016/20 · 20/25
T01.2030DrywallWashbasin installation element, with concealed trap HL 134, pipes exit at the bottom, long pipes400 × 650 × 7015316/20 · 20/25
T01.2035DrywallWashbasin installation element, with concealed trap HL 134, pipes exit at the top, short pipes400 × 650 × 7015316/20 · 20/25
T01.2040DrywallWashbasin installation element, with U-profiles, pipes exit at the bottom, long pipes400 × 1000 × 708016/20 · 20/25
T01.2045DrywallWashbasin installation element, with U-profiles, pipes exit at the top, short pipes400 × 1000 × 708016/20 · 20/25
T01.2050DrywallWashbasin installation element, with U-profiles, with concealed trap HL 134, pipes exit at the bottom, long pipes400 × 1000 × 7015316/20 · 20/25
T01.2055DrywallWashbasin installation element, with U-profiles, with concealed trap HL 134, pipes exit at the top, short pipes400 × 1000 × 7015316/20 · 20/25
T01.2060DrywallWashbasin installation element, with U-profile and multi-layer mounting board, pipes exit at the bottom, long pipes400 × 1000 × 708016/20 · 20/25
T01.2065DrywallWashbasin installation element, with U-profile and multi-layer mounting board, pipes exit at the top, short pipes400 × 1000 × 708016/20 · 20/25
T01.2070DrywallWashbasin installation element, with U-profile and multi-layer mounting board, concealed trap HL 134, pipes exit at the bottom, long pipes400 × 1000 × 7015316/20 · 20/25
T01.2565DrywallWashbasin installation element, with U-profile and multi-layer mounting board, concealed trap Geberit 151125, pipes exit at the bottom, long pipes400 × 1000 × 7027016/20 · 20/25
T01.2555DrywallWashbasin installation element, with U-profile and multi-layer mounting board, concealed trap HL 4000, pipes exit at the bottom, long pipes400 × 1000 × 7027016/20 · 20/25
T01.2560DrywallWashbasin installation element, with U-profile and multi-layer mounting board, concealed trap HL 4000, pipes exit at the top, long pipes400 × 1000 × 7027016/20 · 20/25
T01.2570DrywallWashbasin installation element, with U-profile and multi-layer mounting board, concealed trap Geberit 151.125.00.1, pipes exit at the top, long pipes400 × 1000 × 7027016/20 · 20/25
T01.2075DrywallWashbasin installation element, with U-profile and multi-layer mounting board, concealed trap HL 134, pipes exit at the top, short pipes400 × 1000 × 7015316/20 · 20/25
T01.2080DrywallWashbasin, long, 2 concealed valves, pipes exit at the bottom, long pipes350 × 600 × 708020 · 25 PP
T01.2085DrywallWashbasin, long, 2 concealed valves, 1 water meter, pipes exit at the bottom, long pipes350 × 590 × 708020 · 25 PP
T01.2090DrywallWashbasin, long, 2 concealed valves, 2 water meters, pipes exit at the bottom, long pipes350 × 590 × 708020 · 25 PP
T01.2095DrywallWashbasin, long, Hansgrohe 1362 2180, concealed body, outlet, right, pipes exit at the bottom, long pipes350 × 290 × 70–16/20 · 20/25
T01.2100DrywallWashbasin, long, Grohe 23571 00, concealed body, outlet, right, pipes exit at the bottom, long pipes350 × 290 × 70–16/20 · 20/25
T01.2105DrywallWashbasin, long, Hansa 5786 0100, concealed body, outlet, right, pipes exit at the bottom, long pipes350 × 290 × 70–16/20 · 20/25
T01.2110DrywallWashbasin, long, Kludi 38243, concealed body, outlet, right, pipes exit at the bottom, long pipes350 × 290 × 70–16/20 · 20/25
T01.2115DrywallWashbasin, long, Hansgrohe 1362 2180, concealed body, outlet, left, pipes exit at the bottom, long pipes350 × 290 × 70–16/20 · 20/25
T01.2120DrywallWashbasin, long, Grohe 23571 00, concealed body, outlet, left, pipes exit at the bottom, long pipes350 × 290 × 70–16/20 · 20/25
T01.2125DrywallWashbasin, long, Hansa 5786 0100, concealed body, outlet, left, pipes exit at the bottom, long pipes350 × 290 × 70–16/20 · 20/25
T01.2130DrywallWashbasin, long, Kludi 38243, concealed body, outlet, left, pipes exit at the bottom, long pipes350 × 290 × 70–16/20 · 20/25

Spacing of the wall-plate elbows: 80, 153 or 270 mm

How far apart the hot and cold water sit depends on the waste. With a trap bend and on the boxes with concealed valves it is 80 mm, 153 mm with the concealed trap HL 134, 270 mm with HL 4000 or Geberit 151125.

The values come from the catalogue drawings; the wall-plate column of the dimension table lists them per box. Boxes with a concealed valve body have no wall-plate elbows.

Basin connection in drywall

There are two versions for the stud wall. The 350 mm wide boxes sit with side fixing rails between the studs; the basin cross brace is available for them as option 00194.

The basin mounting element is 400 mm wide and 650 or 1000 mm high, in 1000 mm with U-rails or with a U-rail and a multi-ply board. Both are available with a trap bend or concealed trap.

With a concealed valve body or concealed valves

Some boxes already have the manufacturer's concealed valve body built in: Hansgrohe 1362 2180, Grohe 23571, Hansa 5786 0100 or Kludi 38243, each with the outlet on the left or right.

Boxes with two concealed valves 1/2″ are available without a meter, with one or with two meters.
