Washbasin installation element, with U-profile and multi-layer mounting board, concealed trap HL 4000, pipes exit at the top, long pipes, Drywall.

Model T01-2560 · drain DN50 concealed trap

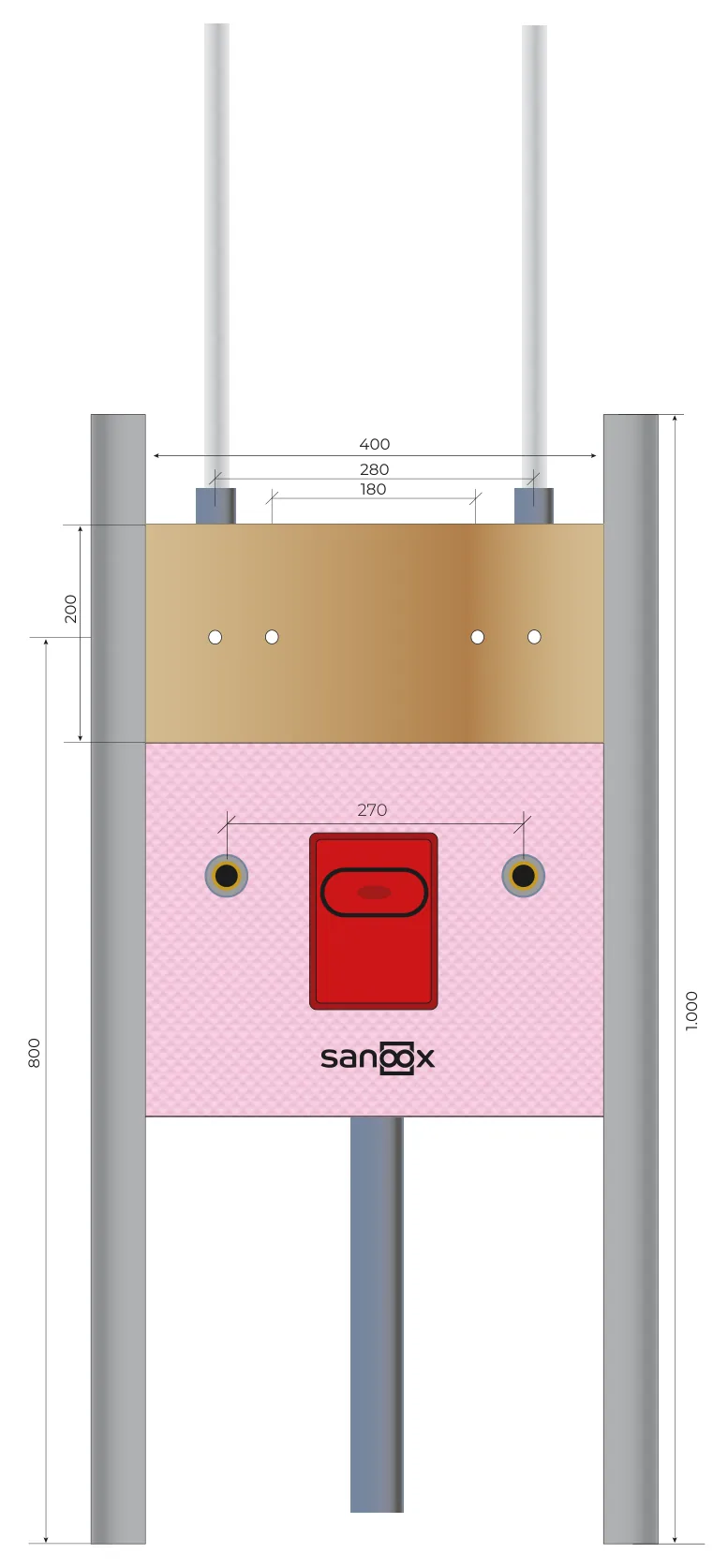

Catalogue drawing Washbasin installation element, with U-profile and multi-layer mounting board, concealed trap HL 4000, pipes exit at the top, long pipes, Drywall (T01-2560) with dimensions
Key data
Width400 mm
Height1000 mm
Depth70 mm

Article numbers (selection)

First 48 of 62 combinations – full list in the configurator.

  • T01.2560.01.20.HL4000
  • T01.2561.01.25.HL4000
  • T01.2560.02.16.HL4000
  • T01.2561.02.20.HL4000
  • T01.2560.03.16.HL4000
  • T01.2561.03.20.HL4000
  • T01.2560.04.16.HL4000
  • T01.2561.04.20.HL4000
  • T01.2560.05.16.HL4000
  • T01.2561.05.20.HL4000
  • T01.2560.06.16.HL4000
  • T01.2561.06.20.HL4000
  • T01.2560.07.16.HL4000
  • T01.2561.07.20.HL4000
  • T01.2560.08.20.HL4000
  • T01.2561.08.25.HL4000
  • T01.2560.09.20.HL4000
  • T01.2561.09.25.HL4000
  • T01.2560.10.16.HL4000
  • T01.2561.10.20.HL4000
  • T01.2560.11.16.HL4000
  • T01.2561.11.20.HL4000
  • T01.2560.12.16.HL4000
  • T01.2561.12.20.HL4000
  • T01.2560.13.16.HL4000
  • T01.2561.13.20.HL4000
  • T01.2560.14.16.HL4000
  • T01.2561.14.20.HL4000
  • T01.2560.15.16.HL4000
  • T01.2561.15.20.HL4000
  • T01.2560.16.16.HL4000
  • T01.2561.16.20.HL4000
  • T01.2560.17.17.HL4000
  • T01.2561.17.20.HL4000
  • T01.2560.18.16.HL4000
  • T01.2561.18.20.HL4000
  • T01.2560.19.16.HL4000
  • T01.2561.19.20.HL4000
  • T01.2560.20.16.HL4000
  • T01.2561.20.20.HL4000
  • T01.2560.21.16.HL4000
  • T01.2561.21.20.HL4000
  • T01.2560.22.16.HL4000
  • T01.2561.22.20.HL4000
  • T01.2560.23.16.HL4000
  • T01.2561.23.20.HL4000
  • T01.2560.24.16.HL4000
  • T01.2561.24.20.HL4000

Compatible pipe systems

Aquatec, Aquapress, Connect Conel, Geberit Mepla schwarz, Geberit Mepla Therm, Geberit FlowFit, Haka, Harreither, Kelit Kelen, Kelit Kelox, Mainpex, Polysan, Prineto IVT, Radopress, Rehau Rautitan Flex, Rehau Rautitan Stabil, Roth Rohr, Sanipex, SIS, TECE Rohr, Uponor MLC, Viega Raxofix, Winkler MT, V&N Easytec, Pipetec IS Press, Multitherm Multipress, Rehau Fastloc, Comisa, Henco, TECE Logo, Valsir Pexal

Options

  • Insulation up to the pipe end (00198)
  • Brass protection plugs (00197)
  • Plastic protection plugs (00196)
